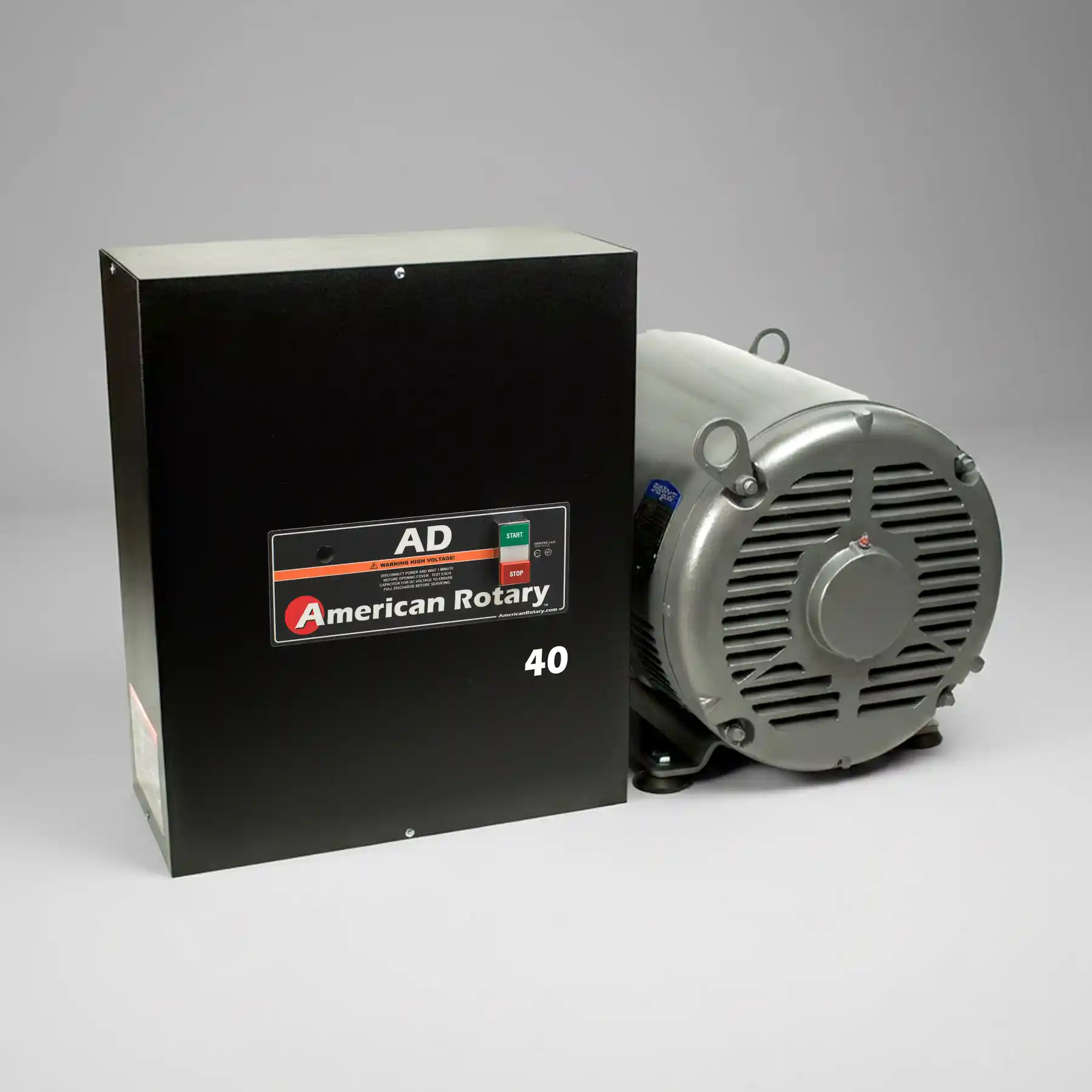

AD 40 HP – 40 HP Digital Phase Converter

$5,553.00

The AD 40 HP Rotary Phase Converter delivers digitally controlled 3-phase power from single-phase service for demanding, voltage-sensitive applications.

Built for CNC systems, welders, and precision machinery, it provides stable, balanced output.

Featuring the MicroSmart™ Controller and a custom GENTEC Baldor VIT™ generator for reliable, long-term performance.

Product total
Options total
Grand total

Built and Supported in Wisconsin, USA

Lifetime Warranty

Same-Day Replacement

General Specifications

Model

40

Efficiency

>98% (at Power Factor of .9)

Idle Power Consumption (kW)

1.20 ($0.12/hr)

Single Phase Requirements

Input Voltage
208 – 250
Frequency (Hz)
50 / 60
Minimum Wire Size

1

Minimum Breaker Size

125

Three Phase Specifications

Voltage Balance
0 – 5%
Maximum Starting Load

20 HP / 56 amps

Maximum Running Load

40 HP / 112 amps

Physical Specifications

Idler Insulation Class
F
Idler RPM
1750
Idler L × D × H

22.5” × 21” × 16”

Panel H × W × D

24” × 18” × 8”

Panel Style
NEMA 1 / Type 1 Indoor
Total Weight (lbs)

368

Refer to the installation guide and full specification sheets above for complete wiring, dimensional, and electrical details. Proper sizing and installation ensure safe, reliable operation.

AD Series Technology

The AD Series is engineered to provide optimum performance for voltage-sensitive applications through American Rotary’s proprietary digital phase conversion design. Built for precision equipment, it delivers stable voltage, true sinewaves, and adaptive load control.

MicroSmart™ Controller

Our proprietary digital controller monitors output voltage every 50 milliseconds, providing precise voltage balance and adapting to changing loads. This protects CNC machines, welders, and other sensitive equipment from nuisance tripping and voltage fluctuation.

GENTEC Baldor VIT™ Generator

Designed specifically for phase conversion, the Variable Impedance Technology (VIT™) generator provides a true soft start with reduced starting current. This minimizes voltage drop and protects your valuable equipment.

Stable Voltage and True Sinewaves

By balancing power factor and phase angle, the VIT™ induction generator produces clean, undistorted sinewaves for cooler operation, improved efficiency, and longer equipment life.

Expandable Design & Full Current Starter

Custom-designed starter components handle demanding loads, while expandable options and upgrade paths allow the AD Series to grow with your shop needs.

Explore full AD Series technology →

American Rotary backs our phase converters with an industry-leading warranty, including Lifetime Warranty coverage on our AR, AD, ADX, AI, and AMP Smart Series models.

All control panels are warranted against defects in workmanship and materials, with service available in the field or at our Factory Service Center in West Bend, Wisconsin.

Complete warranty details are available here: https://www.americanrotary.com/warranty/

See the AD Series in Action

The AD Series is built for voltage-sensitive equipment requiring precision power. Watch how the MicroSmart™ Controller monitors voltage in real time to maintain balanced output and adapt to changing loads.

From CNC machines to welders and rectified loads, AD converters provide digitally controlled 3-phase power to protect equipment and reduce nuisance tripping.
