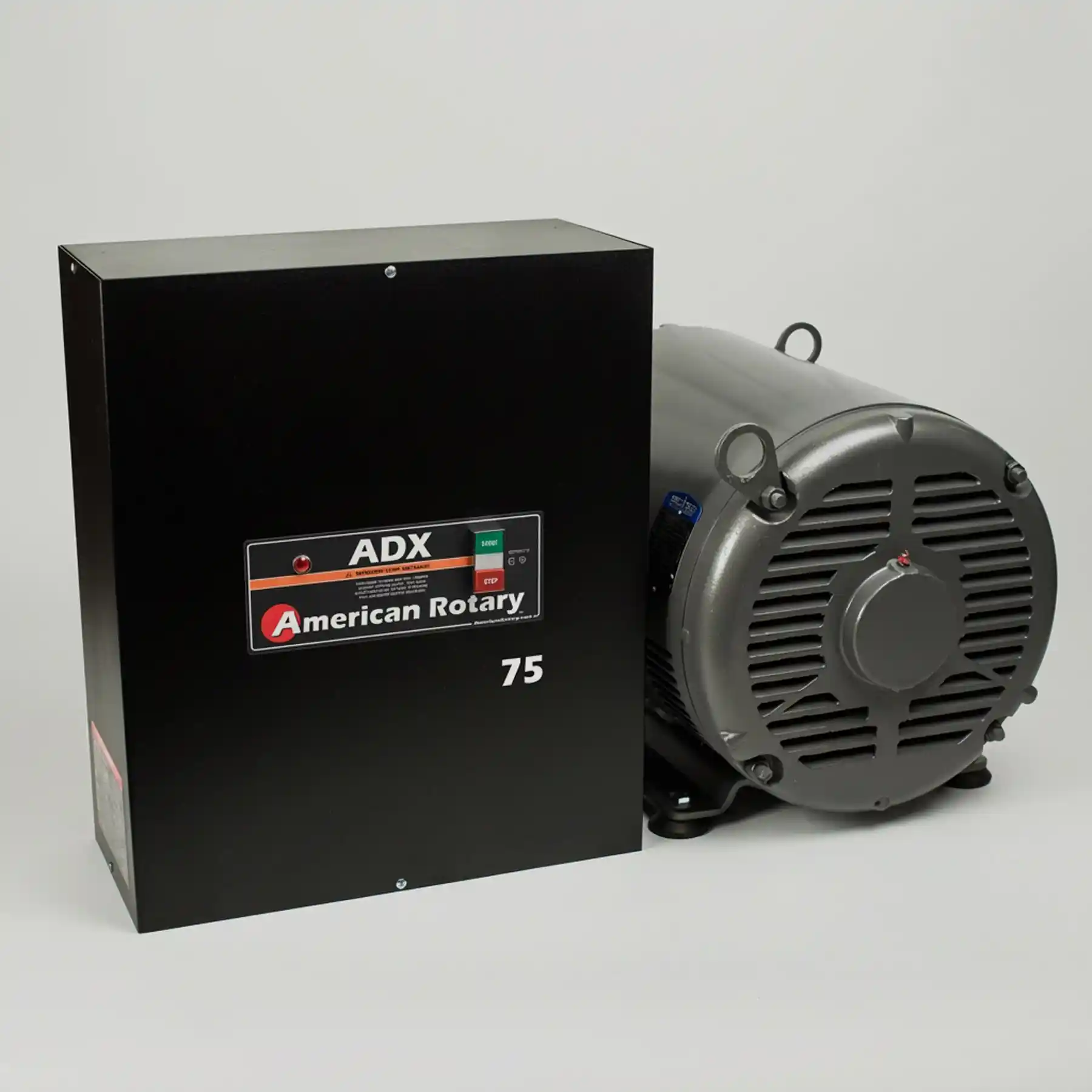

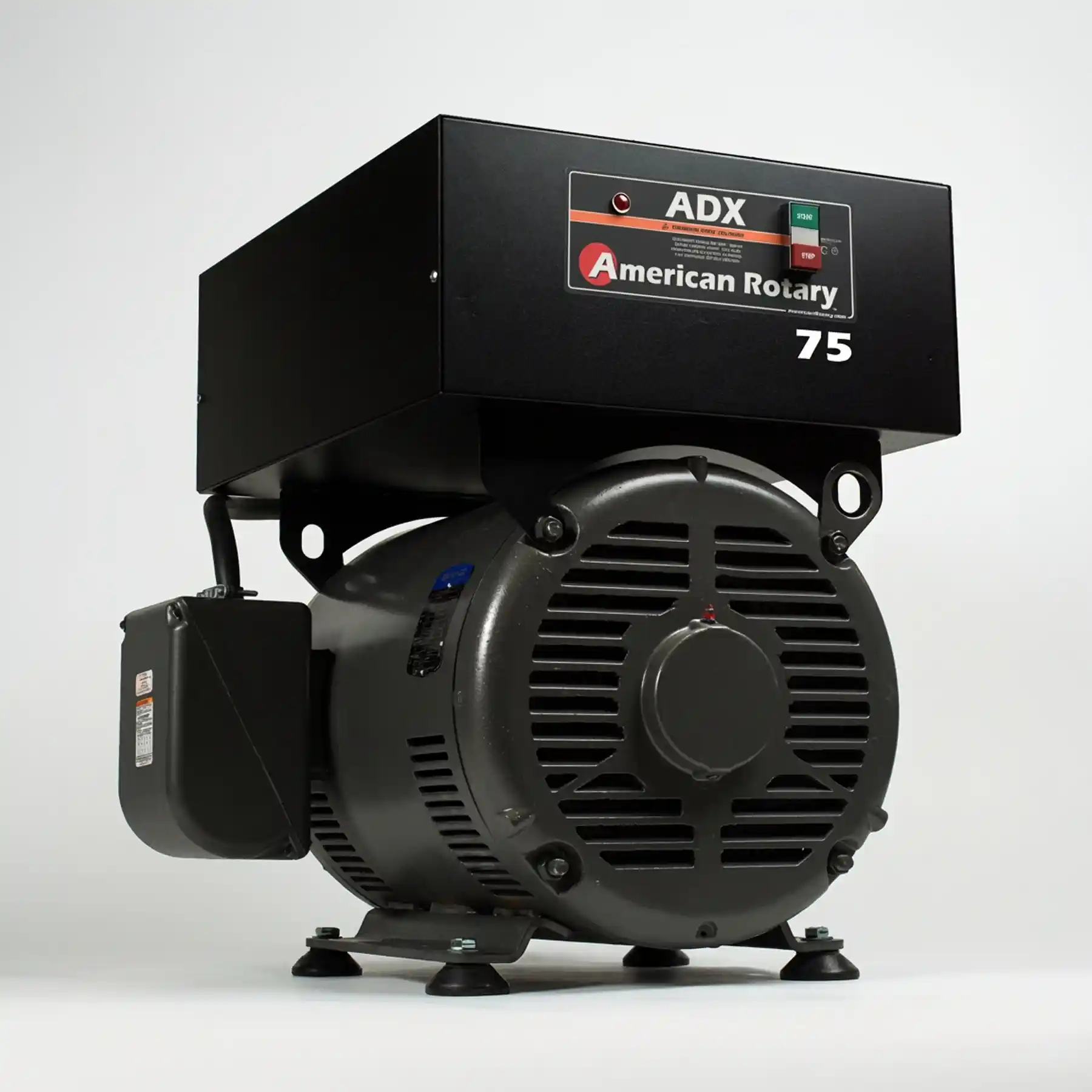

ADX 75 HP – 75 HP Smart Phase Converter

$9,415.00

The ADX 75 HP Rotary Phase Converter delivers high-torque, digitally controlled 3-phase power from single-phase service for the most demanding, high-inertia applications.

Built for large compressors, refrigeration systems, and heavy industrial equipment, it maintains stable, balanced output using MicroSmart™ control and proprietary CTR technology.

Product total
Options total
Grand total

Built and Supported in Wisconsin, USA

Lifetime Warranty

Same-Day Replacement

General Specifications

Model

75

Efficiency

>98% (at Power Factor of .9)

Idle Power Consumption (kW)

2.1 ($0.21/hr)

Single Phase Requirements

Input Voltage
208 – 250
Frequency (Hz)
50 / 60
Minimum Wire Size

4/0

Minimum Breaker Size

200

Three Phase Specifications

Voltage Balance
0 – 5%
Maximum Starting Load

37.5 HP / 105 amps

Maximum Running Load

75 HP / 210 amps

Physical Specifications

Idler Insulation Class
F
Idler RPM
1750
Idler L × D × H

22.5” × 22” × 17”

Panel H × W × D

24” × 18” × 8”

Panel Style
NEMA 1 / Type 1 Indoor
Total Weight (lbs)

617

Refer to the installation guide and full specification sheets above for complete wiring, dimensional, and electrical details. Proper sizing and installation ensure safe, reliable operation.

ADX Series Technology

The ADX Series combines advanced digital control and proprietary startup technology to deliver stable three-phase power for demanding equipment and high inertia loads.

For 100 HP and above, ADX systems operate as synchronized parallel units using enclosed contactors to prevent backfeeding and ensure stable high-capacity operation.

MicroSmart™ Controller

A digital controller monitors voltage across all three phases and automatically maintains precise electrical balance as loads change.

CTR (Current Transient Reactor) Technology

CTR technology allows higher startup current to deliver increased torque while stabilizing voltage during heavy equipment startup.


GENTEC Baldor VIT™ Generator

Variable Impedance Technology provides reduced inrush current and stable voltage for smoother motor startup and improved electrical efficiency.

Built for High-Inertia Loads

The ADX Series is designed to start demanding equipment such as compressors, pumps, blowers, and heavy industrial machinery.

Explore full ADX Series technology →

American Rotary backs our phase converters with an industry-leading warranty, including Lifetime Warranty coverage on our AR, AD, ADX, AI, and AMP Smart Series models.

All control panels are warranted against defects in workmanship and materials, with service available in the field or at our Factory Service Center in West Bend, Wisconsin.

Complete warranty details are available here: https://www.americanrotary.com/warranty/

See the ADX Series in Action

Watch how MicroSmart™ digital control and proprietary CTR (Current Transient Reactor) technology work together to deliver higher torque, faster starts, and stable voltage under load.

From air compressors and HVAC systems to high-inertia industrial equipment, ADX converters start machinery smoothly while protecting wiring and sensitive components.
