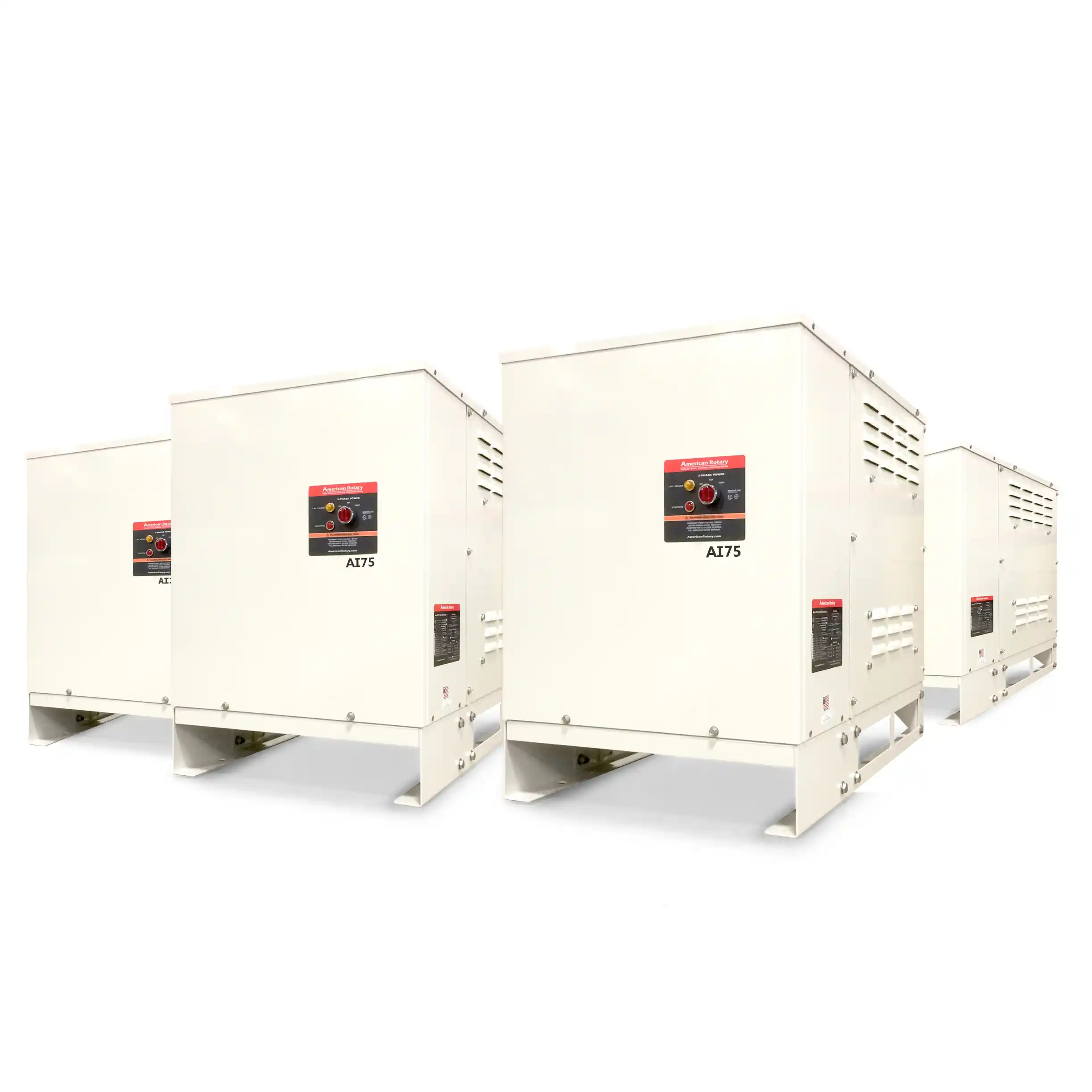

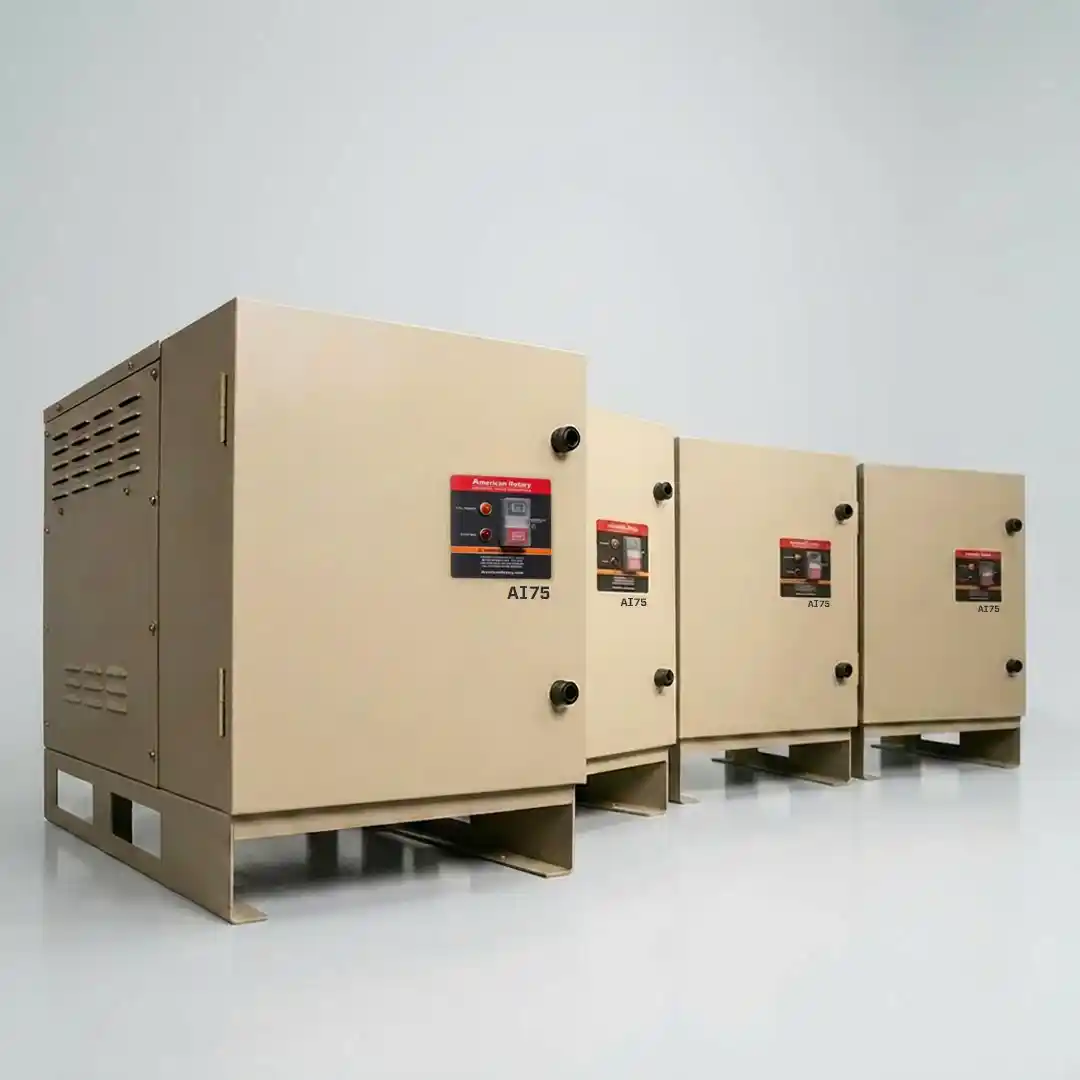

AI 300 HP – 300 HP Industrial Phase Converter

$53,628.00

The AI Industrial 200 HP Rotary Phase Converter delivers outdoor-rated, digitally controlled 3-phase power from single-phase service for large, high-demand industrial and agricultural operations.

Built with a NEMA 3R enclosure and rugged construction, it ensures stable, reliable performance in harsh environments using a GENTEC Baldor VIT™ generator.

Product total
Options total
Grand total

Built and Supported in Wisconsin, USA

Lifetime Warranty

Same-Day Replacement

General Specifications

Model

300

Efficiency

>98% (at Power Factor of .9)

Idle Power Consumption (kW)

8.4 ($0.84/hr)

Single Phase Requirements

Input Voltage
208 – 250
Frequency (Hz)
50 / 60
Minimum Wire Size

4/0

Minimum Breaker Size

200

Three Phase Specifications

Voltage Balance
0 – 5%
Maximum Starting Load

150 HP / 410 amps

Maximum Running Load

300 HP / 840 amps

Physical Specifications

Idler Insulation Class
F
Idler RPM
1750
Idler L × D × H

24” × 18” × 8”

Panel H × W × D

24” × 20” × 10”

Panel Style
NEMA 1 / Type 1 Indoor
Total Weight (lbs)

2468

Configuration Note:

Models AUL-100 and above utilize multiple AUL units paralleled together through enclosed contactors to prevent backfeeding and provide phase monitoring. The enclosed contactor assembly is included in the listed price.

Refer to the installation guide and full specification sheets above for complete wiring, dimensional, and electrical details. Proper sizing and installation ensure safe, reliable operation.

AI Industrial Series Technology

The AI Industrial Series is designed for demanding industrial and agricultural environments where phase converters must operate reliably in outdoor or harsh conditions.

For 100 HP and above, AI Industrial systems operate as synchronized parallel units using enclosed contactors to prevent backfeeding and ensure stable high-capacity operation.

NEMA 3R / Type 3R Enclosure

A weather-resistant NEMA 3R enclosure protects the system from rain, snow, and environmental exposure for outdoor installation.

GENTEC Baldor VIT™ Generator

Variable Impedance Technology reduces inrush current and produces stable three-phase power for smooth motor startup.

Heavy-Duty Industrial Construction

Reinforced mounting and protective filtration help shield internal components from dust, debris, and demanding environments.

Built for Continuous Industrial Use

Available in multiple voltage and horsepower configurations, the AI Series delivers reliable three-phase power for large industrial and agricultural equipment.

Explore full AI Series technology →

American Rotary backs our phase converters with an industry-leading warranty, including Lifetime Warranty coverage on our AR, AD, ADX, AI, and AMP Smart Series models.

All control panels are warranted against defects in workmanship and materials, with service available in the field or at our Factory Service Center in West Bend, Wisconsin.

Complete warranty details are available here: https://www.americanrotary.com/warranty/

See the AI Industrial Series in Action

The AI Industrial Series was engineered specifically for outdoor agricultural applications and harsh industrial environments.

Built with a NEMA 3R enclosure and heavy-duty construction, it delivers reliable 3-phase power in rain, snow, dust, and demanding conditions.

Watch how the AI Series combines environmental protection with stable, digitally controlled performance for continuous industrial use.
