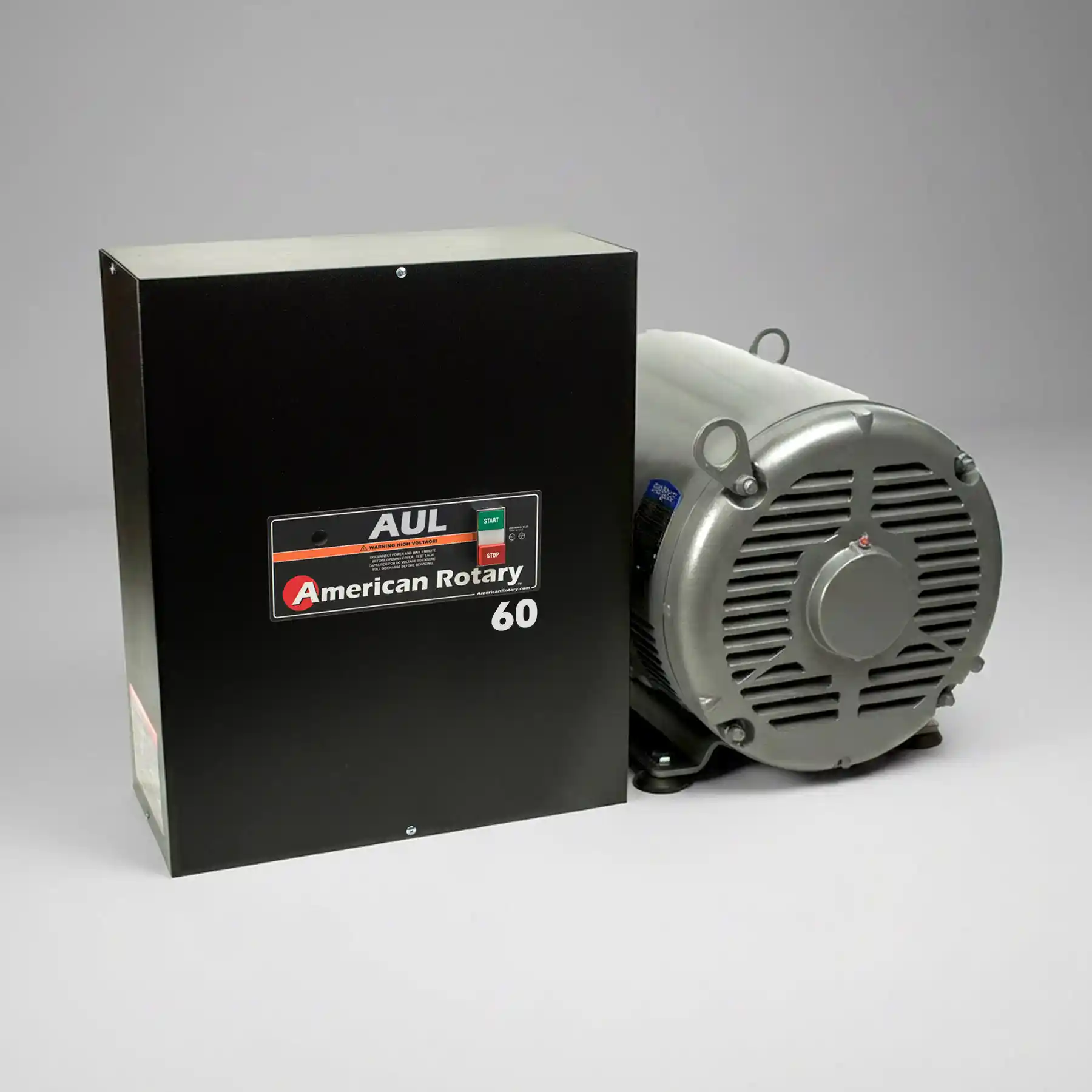

AUL 60 HP – 60 HP UL Smart Phase Converter

$6,098.00

The AUL 60 HP Rotary Phase Converter delivers UL-certified, digitally controlled 3-phase power from single-phase service for demanding, high-inertia industrial applications.

Engineered for inspection-ready installations, it integrates MicroSmart™ control, proprietary CTR technology, and a GENTEC Baldor VIT™ generator for stable, reliable long-term performance.

Product total
Options total
Grand total

Built and Supported in Wisconsin, USA

Lifetime Warranty

Same-Day Replacement

General Specifications

Model

60

Efficiency

>98% (at Power Factor of .9)

Idle Power Consumption (kW)

1.8 ($0.18/hr)

Single Phase Requirements

Input Voltage
208 – 250
Frequency (Hz)
50 / 60
Minimum Wire Size

2/0

Minimum Breaker Size

175

Three Phase Specifications

Voltage Balance
0 – 5%
Maximum Starting Load

30 HP / 84 amps

Maximum Running Load

60 HP / 168 amps

Physical Specifications

Idler Insulation Class
F
Idler RPM
1750
Idler L × D × H

22.5” × 22” × 17”

Panel H × W × D

24” × 18” × 8”

Panel Style
NEMA 1 / Type 1 Indoor
Total Weight (lbs)

538

Refer to the installation guide and full specification sheets above for complete wiring, dimensional, and electrical details. Proper sizing and installation ensure safe, reliable operation.

AUL Series Technology

The AUL Series combines the heavy-duty performance of the ADX platform with UL-certified construction for installations that require documented electrical compliance.

For 100 HP and above, AUL systems operate as synchronized parallel units using enclosed contactors to prevent backfeeding and ensure stable high-capacity operation.

UL Certified Control Panel Builder

AUL converters are built using UL-compliant control panels designed to meet inspection and electrical code requirements.

MicroSmart™ Controller

A digital controller continuously monitors voltage and maintains balanced three-phase output as equipment loads change.

CTR (Current Transient Reactor) Technology

CTR technology allows higher startup current to deliver greater torque while maintaining stable voltage during heavy equipment startup.

GENTEC Baldor VIT™ Generator

Variable Impedance Technology reduces inrush current and produces stable three-phase power for smooth motor startup.

Explore full AUL Series technology →

American Rotary backs our phase converters with an industry-leading warranty, including Lifetime Warranty coverage on our AR, AD, ADX, AI, and AMP Smart Series models.

All control panels are warranted against defects in workmanship and materials, with service available in the field or at our Factory Service Center in West Bend, Wisconsin.

Complete warranty details are available here: https://www.americanrotary.com/warranty/

Compare AR, AD, ADX & AUL

Not sure which series fits your installation requirements?

This overview video explains the differences between AR, AD, ADX, and AUL models, including general-purpose performance, digital voltage control, high-torque starting capability, and UL-certified construction.

See when UL certification is required and how the AUL Series combines ADX performance with inspection-ready compliance.
