Starting at $239.00

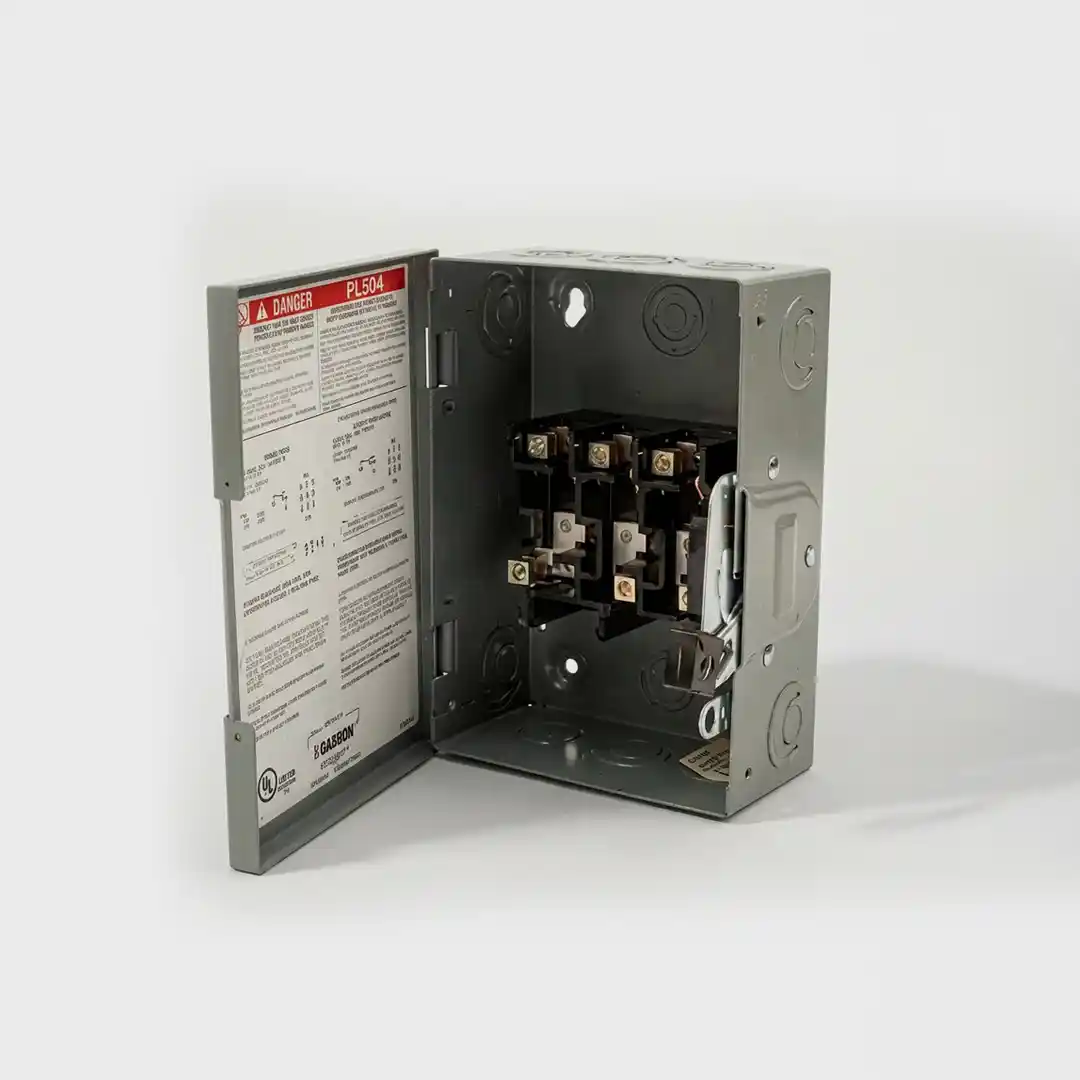

Safely shut off power to your equipment with a general-duty disconnect switch designed for 240V systems.
Used for CNC machines, compressors, pumps, and shop equipment requiring reliable power isolation during maintenance or emergency shutdowns.
Features a non-fused, 3-pole design with visible blades and a grounding lug, allowing you to clearly confirm power is disconnected before servicing equipment.
*Can be wired for 240V single-phase use. See specifications for details.
Technical specifications for 240V Disconnect Switch (General Duty):
Voltage
240V
Type
Non-Fused Safety Switch
Poles
3 Pole
Phase
3 Phase (can be wired for 240V single-phase use)
Available Amperage
30A, 60A, 100A, 200A
Enclosure Type
NEMA 3R (Outdoor)
Included Features
Grounding Lug, Visible Blades
Mounting Type
Surface Mount
Electrical Connection
Lugs
Certification
UL Listed
Horsepower Rating (by Amperage)
Amps
3Ø
1Ø
30
7.5 HP
3 HP
60
15 HP
10 HP
100
30 HP
15 HP
200
50 HP
15 HP
Download the full spec sheet here
If you are looking for something specific that you don’t see listed. Feel free to reach out to American Rotary at 888-743-6832 and we will be happy to help find something that will work for you!
Disconnects Power to Equipment
Cuts incoming power to safely service or shut down machinery.
Manual On/Off Operation
Simple switch mechanism allows quick and reliable control of power.
Visible Blade Design
Provides clear visual confirmation that power is fully disconnected.
Supports Multiple Applications
Works with a wide range of equipment in both 3-phase and 240V single-phase setups.
Application Use
Used for CNC machines, compressors, pumps, and general shop equipment.
This disconnect switch is backed by the manufacturer, Schneider Electric (Square D), and is covered against defects in materials and workmanship.
For full warranty details, refer to the product documentation or contact our team.
Our Advantages
In-stock equipment ships quickly so you can keep your operation running without delays.
American Rotary equipment is designed for real-world shop environments, with reliable components and proven performance.
From common applications to specialized setups, we stock a range of solutions ready to ship. If you don’t see what you need, we can help source it.
Choosing the right equipment matters. Our team helps you select the correct solution based on your application and requirements.
